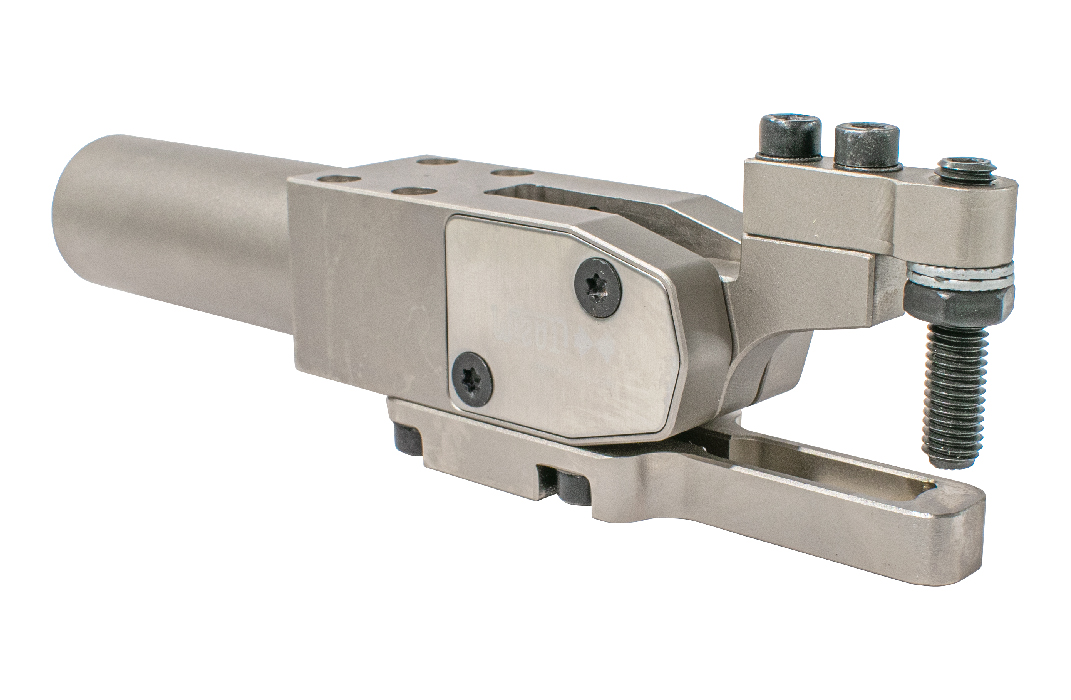

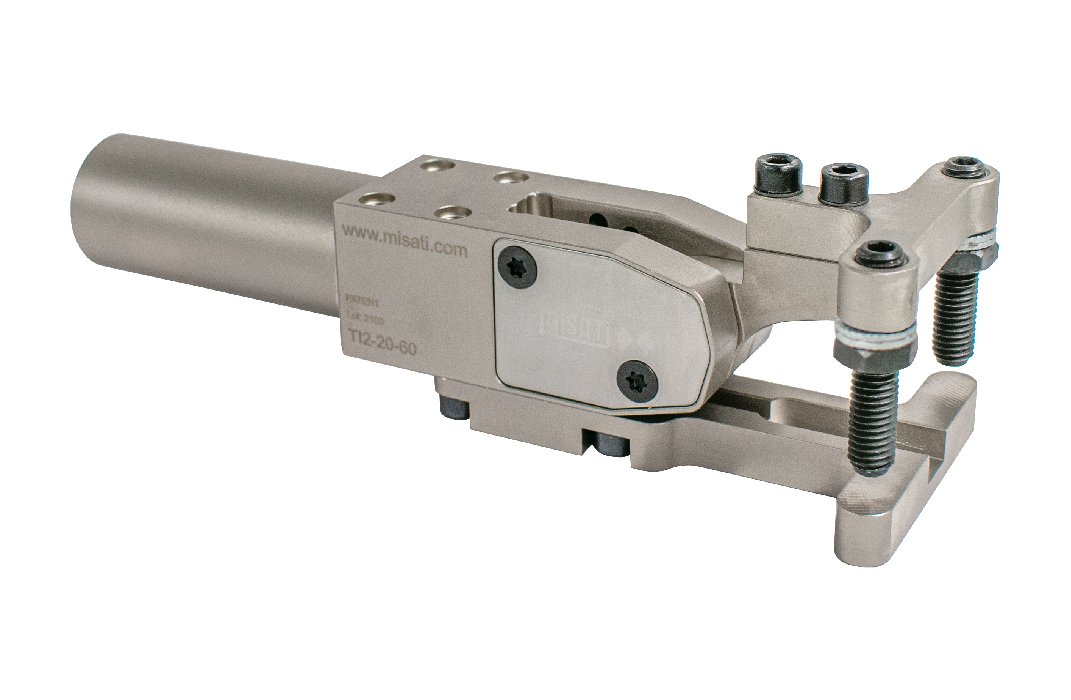

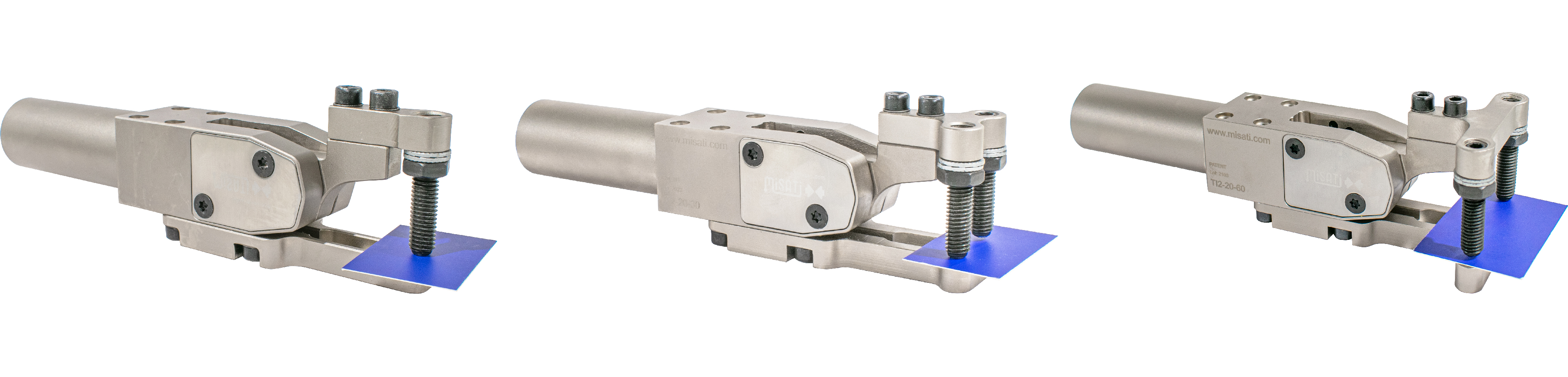

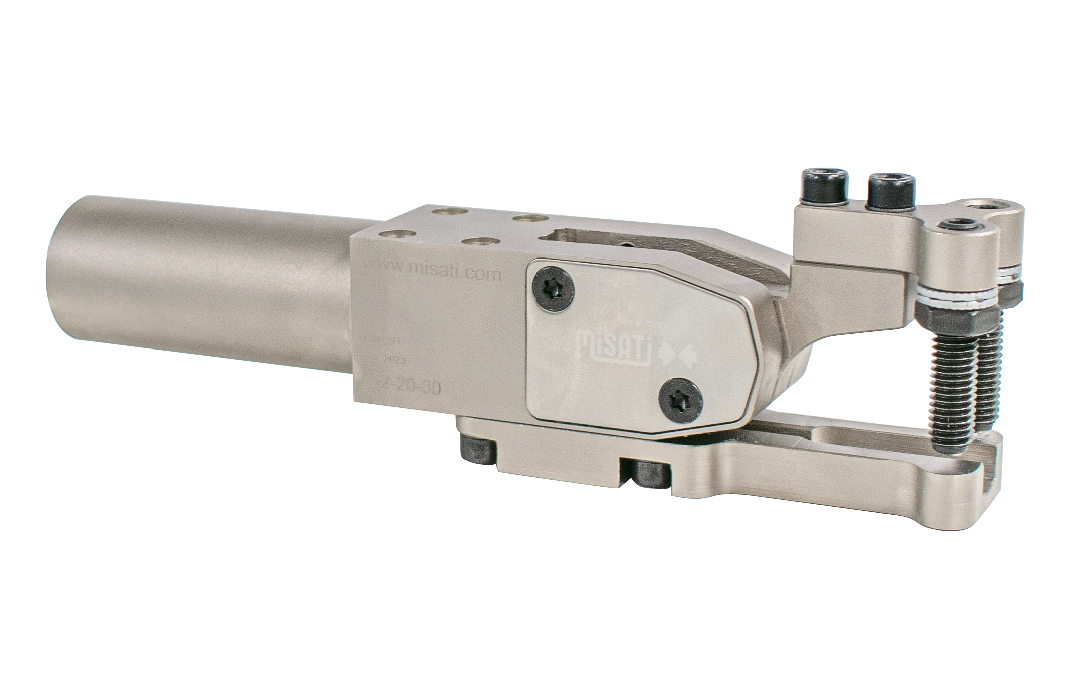

Ø20 minipincer with a moving arm recommended for fastening horizontally-oriented sheets.
| Reference | Maximum Fc | Piston ø | Air consumption | Weight |
|---|---|---|---|---|
| TI-20-15-SX | 1030 N | 20 mm | 16 cm3 | 0.81 Kg |
| TI-20-30-SX | 1030 N | 20 mm | 16 cm3 | 0.86 Kg |
| TI-20-60-SX | 1030 N | 20 mm | 16 cm3 | 0.95 Kg |
| Reference | l1 | l2 | l3 | h1 | h2 | h3 | h4 | r1 | r2 | e1 | e2 | e3 | e4 | e5 | c1 | c2 | d1 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| TI-20-15-S0/S1/S2 | 70.5 | 115.5 | 35.3 | 10 | 32.1 | 10 | 42.2 | 58 | 10.5 | 186 | 32 | 57.7 | 15 | 15 | - | 13 | ø 28h8 |
| TI-20-15-S3/S4 | 70.5 | 115.5 | 35.3 | 10 | 32.1 | 10 | 42.2 | 58 | 10.5 | 186 | 45.1 | 57.7 | 15 | 15 | - | 13 | ø 28h8 |
| TI-20-30-S0/S1/S2 | 70.5 | 116.5 | 36.3 | 10 | 32.1 | 10 | 42.2 | 58 | 10.5 | 187 | 32 | 57.7 | 34 | 29 | 19 | 13 | ø 28h8 |
| TI-20-30-S3/S4 | 70.5 | 116.5 | 36.3 | 10 | 32.1 | 10 | 42.2 | 58 | 10.5 | 187 | 45.1 | 57.7 | 34 | 29 | 19 | 13 | ø 28h8 |
| TI-20-60-S0/S1/S2 | 70.5 | 116.5 | 36.3 | 10 | 32.3 | 10 | 42.2 | 58 | 10.5 | 187 | 32 | 57.7 | 62 | 58 | 47 | 13 | ø 28h8 |
| TI-20-60-S3/S4 | 70.5 | 116.5 | 36.3 | 10 | 32.1 | 10 | 42.2 | 58 | 10.5 | 187 | 45.1 | 57.7 | 62 | 58 | 47 | 13 | ø 28h8 |
