Horizontal steel mounting

SH-30-L-F

Description

Horizontal steel mounting.

Download CAD
Mountings for transfer press profiles provide maximum rigidity and resistance.
Dimensions
Technical specifications
Request a quote
Reference Weight
SH-30-75-F 0.343 kg
SH-30-100-F 0.407 kg
Reference e1 e2 e3 c1 l1 d1
SH-30-75-F 35 80 5 45 75 30
SH-30-100-F 35 80 5 45 100 30

Examples of applications

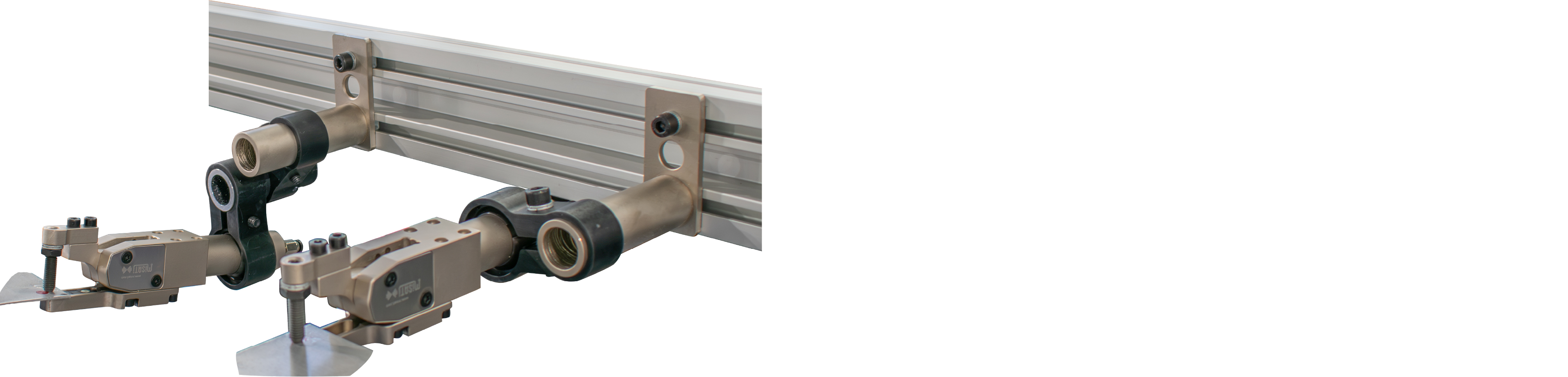

Aluminium mountings are very robust, space-saving and adjustable.

Technical Documentation
